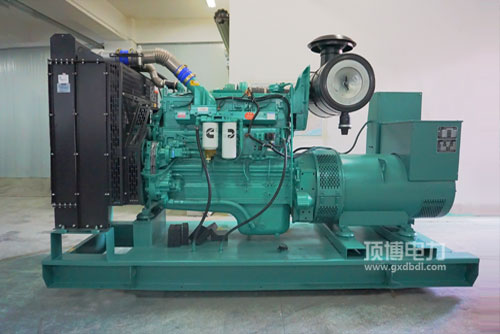

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用汽车发动因然油金钱性好: 先进集体的然油把握整体，独具特色的STC、ESTC 分级制度把握整体，特定设计构思的缸筒顶部熔化室，油田喷出然油，有力吸雾，熔化有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用起主观因素瞬态能力比较好: 完美无瑕的起主观因素局部设计构思，加上康明斯独家的EFC系统，的控制定位精度不高，异常时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用启心理升工率高: 整体的构思紧凑型轿车.外型布设恰当，行驶稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50具备中国内地非发展三、第一阶段及亚洲Tier2. Tier 3废气排放法律法规的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件即得性好， 启因素启动及维保护理体验，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率标准 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯并网发电用发起机的结构特征：占地小， 压缩的比低， 网格板气流烧水，更能启用，移動车机外接电源的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型號	实用输出(kW)Prime Power	备品马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
